No-Odo Urinals

naturesani® no-odo® waterless urinal system is hydrophobic and microbe repellent. The urinal body has high surface density through the application of special glazed materials and enamel technology. This helps in eliminating the odour and achieves surface protection.

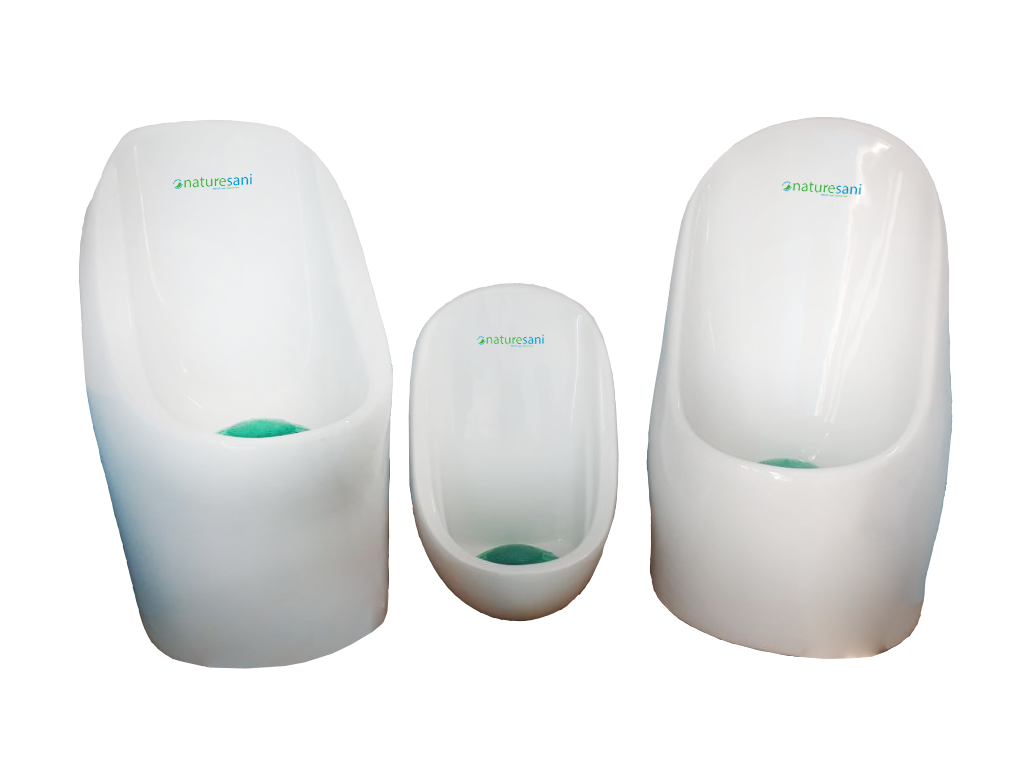

naturesani® no-odo® waterless urinal system comes in two variants and designed for both horizontal and vertical urine disposal to suit men and children. Each urinal system includes the bowl, cartridge and the housing.

BOWL:

The high-quality ceramic bowl has an anionic, hydrophobic and anti-bacterial surface, which means reduced daily cleaning. It needs no water to clean the bowl, as our proprietary cleaning liquid is used to wipe the bowl clean.

The special surface layer of the urinal body has bacteria repelling caoting. It helps to suppress all bacterial infestations, eliminates odour, stains and scales created by urine. The silver nanometer class anti-soil and bacterial proof technology helps repel bacteria and other microbes such as Staphylococcus aureus and Escherichia coli.

Cartridge:

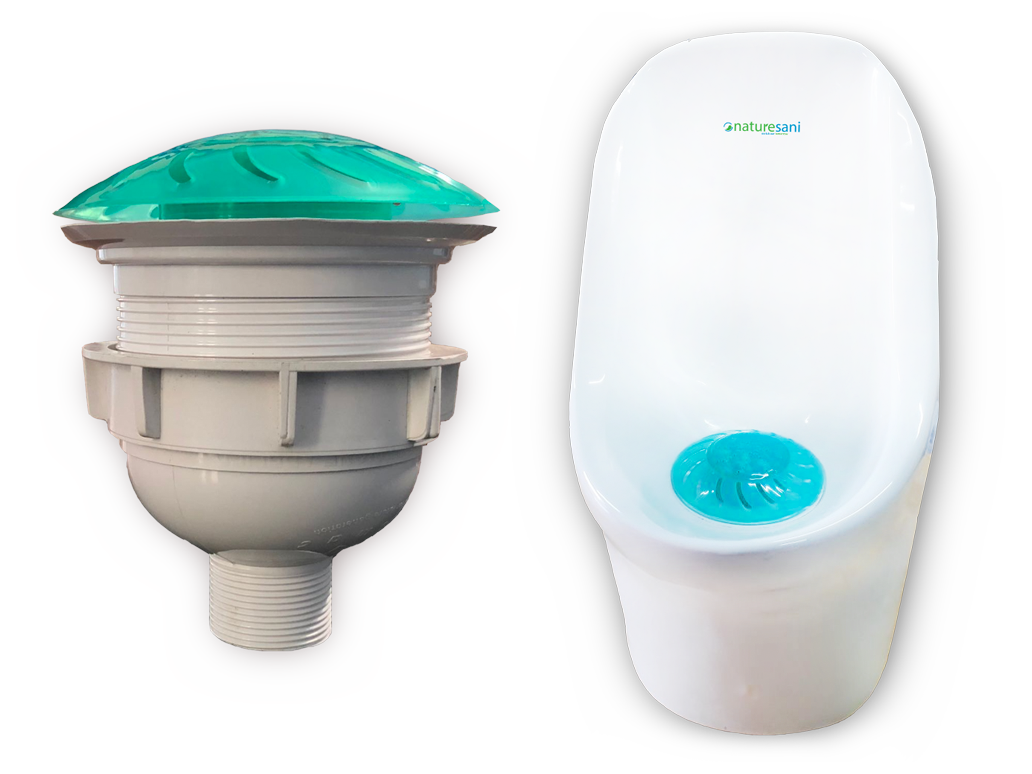

The cartridge of our waterless urinal system is designed and developed using indigenous technology. The cartridge acts as a dual barrier and helps create odour-free restroom environment. The cartridge is made of high grade and durable plastic.

It includes the main cartridge housing, cartridge housing nut, trap, trap holder, saucer, saucer cap and anti-bacterial assembly. The urine enters from the basin exit, from where it moves into the trap and into the housing. The urine collected at the housing is sent out through the drain pipe attached to the cartridge housing unit.

Once installed, the cartridge if maintained properly, has a life of more than one year. It can be cleaned with fresh water, detergents and special toilet cleaning solution. It is safe to avoid acid while cleaning the bowl and cartridge as it may affect their working condition. The maintenance of the waterless urinal is so easy that, its bowl, cartridge and housing can also be swiped clean with a cloth or tissue.

The Organic biological block with Pellets or anti-bacterial block / cake on the top of the cartridge prevents bacterial growth, removes bad odours and creates a refreshing feeling in the washroom environment. The silicon trap is the key component of the cartridge. It uses gravity, as urine drains into the trap it closes tightly and stops the odour from entering the saucer.

The anti-bacterial block / cake on the top of the cartridge prevents bacterial growth, removes bad odours and creates a refreshing feeling in the washroom environment. The silicon trap is the key component of the cartridge. With the effect of gravity as urine drains into the trap it closes tightly and stops the odour from entering the saucer and the washroom environment.

Housing:

Our housing creates an air-tight lock between the cartridge and fixture. The housing makes use of gravity to allow urine flow into the pipes. naturesani’s waterless urinal system presents three prominent features – It is touch free, odour free and inhibits the growth of microbes. As there is no need to flush the urinal, it remains touch free and eliminates the spread of bacteria.

naturesani®’s waterless urinal system presents three prominent features – It is touch free, odor free and inhibits the growth of bacteria. As there is no need to flush the urinal, it remains touch free and eliminates the spread of bacteria.

It is totally odour free as the cartridge's air-tight seal helps eliminate odour better than the conventional ‘P-traps’. Also, there is far lesser bacteria in waterless urinals than in water-flush urinals, which make our urinal system more preferred.

Naturesani - 3 in 1 Urinal Stand for MEN

A) Outdoor 304 Stainless Steel Urinal stall with Odorless and Waterless Urinals. Stainless Steel body is of 1.2mm thickness with three compartments and 3mm Aluminum bottom plate. Size: 6' X 6' X 7'.5" wipe the bowl clean.

B) 3Nos of Non-stick microbial repellent Urinal Commodes with inbuilt odorless cartridge

C) Privacy Stands
i) 3Nos of 304 Stainless steel privacy standsWith 36" X 30" SS sheet, 15' SS pipe.
ii) 3 Nos of 9" X 27" ACP panels with Eco solvent printing for sign board.
iii) 36”x30” Size Sticker can be customized as per your design on actual.
